SR-202A rectifier and demagnetized electromagnetic chuck controller
SR-202A rectifier and demagnetized electromagnetic chuck controller
Product Specification



  • Input voltage: AC 110V/220V/380V
  • Output voltage: DC 0 ~ 100V
  • Output current: 10A,15A(type),20A
  • Demagnetizing time actuation range: 5 ~ 18s
  • Output power: 1000W,1500W(type),2000W
  • Working temperature: -10 °C ~ 80 °C
  • Dimension: L280 X W370 X H140
Others

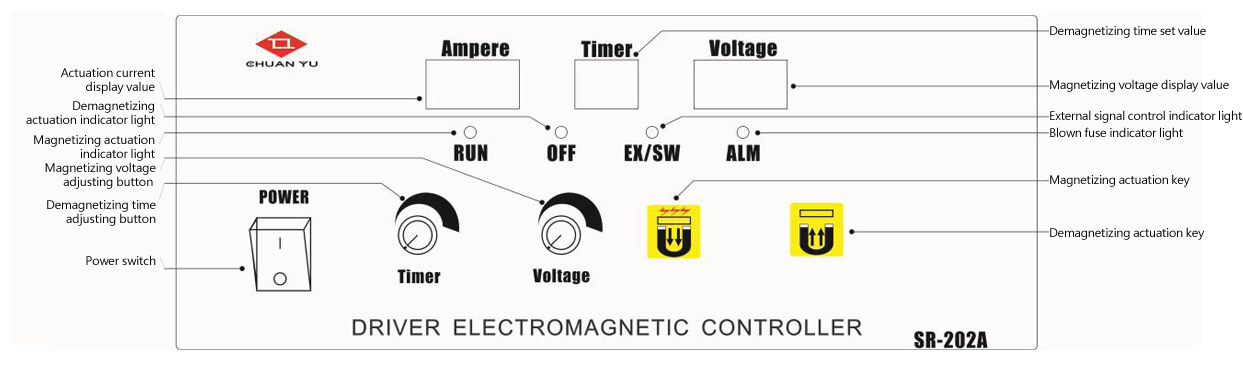

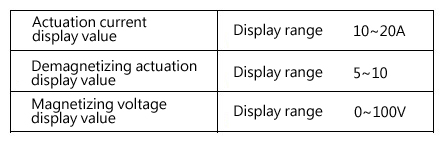

Panel diagram and functional description:

Switch type

Key switch type

※External signal control display light is required to work with external amplification remote controller for actuation(this controller is optional)

Explanatory notes:

1. Demagnetization time action values range from 5 ~18 seconds.

2. Overload protection actuation. During the actuation, if the load is more than the maximum rated current value, it will be automatically adjusted to 95% of the maximum upper limit. For example, with maximum rated current type 10A, if load actuation current is greater than 10A, the current will be limited automatically, and maximum value won't be over 9.5A.



Terminal Pin Description:

Amplification external distal description:

SR-202A selection of model specifications SR-202A - Code 1- Code 2 - Code 3

Code1Code2Code3
V12 110V/220V A10 10A
Output current		 SW Magnetizing and demagnetizing operation panel change-over switch type
V38 380V A15 15A
Output current		 PB Magnetizing and demagnetizing operation panel key switch typ
A20 20A
Output current
