SR-102A rectifier and demagnetized electromagnetic chuck controller
SR-102A rectifier and demagnetized electromagnetic chuck controller
Product Specification



  • Input voltage: AC 110V/220V
  • Output voltage: DC 0 ~ 100V
  • Output current: maximum 5A
  • Output power: maximum 500 W
  • Time adjustment value: 5-8
  • Demagnetization time actuation range: 6 ~ 13s
  • Working temperature: -10 °C ~ 80 °C
  • Dimension: L100 X W130 X H198
Others

Panel diagram and functional description:

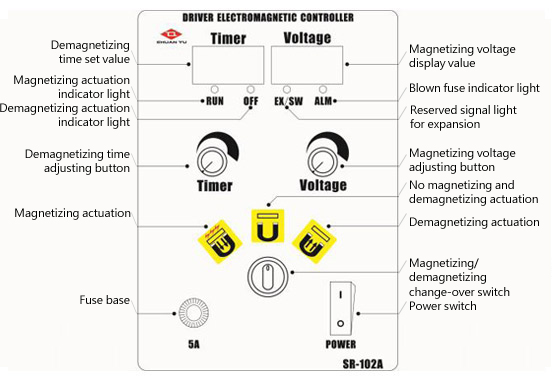

Switch type

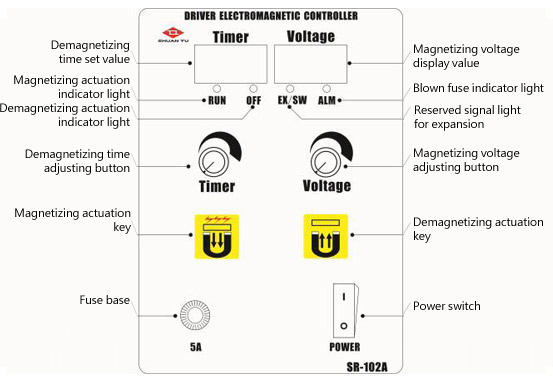

Key switch type

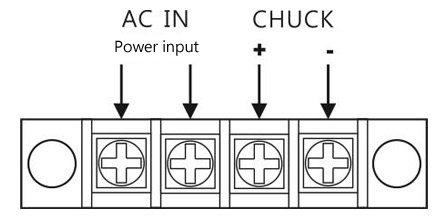

Terminal Pin Description:

SR-102A selection of model specifications SR-102A - Code 1 - Code 2

Code1Code2
V11 AC110V SW Magnetizing and demagnetizing operation panel change-over switch type
V22 AC220V PB Magnetizing and demagnetizing operation panel key switch typ

Remarks

In the rectified and demagnetized controllers with 110V voltage and power supply type, when the demagnetizing time adjustment is shorter, the demagnetizing effect will be better and will not be easily stained with iron dust; with 220V voltage and power supply type, when the demagnetinzing time adjustment is longer, the demagnetizing effect will be better and will not be easily stained with iron dust.
