Home > Products > Voltage/Current/Analog Signal/Pressure/Liquid Level/Weight Control Meter
Voltage/Current/Analog Signal/Pressure/Liquid Level/Weight Control Meter
Display type voltage and current signals display control meter
Operations manual
Description

♦ Measuring the AC voltage AC 0 ~ 600V

♦ Measure AC current values 0 ~ 5A;if below 5A, tandem connection can be made directly.
Specification

♦Working power supply: AC/DC 85 ~ 240V

♦Display screen: 14.5mm X 8.5mm

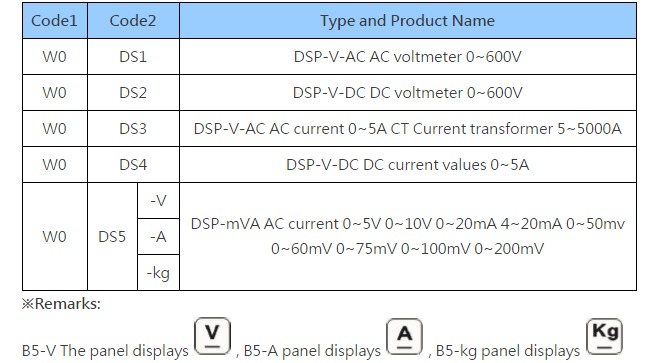

Selected type and specification of display tye: VA - Code 1 - Code 2
read more
AC/DC Voltage and current signal upper and lower limits control meter(single-row display type)
Operations manual
Description

♦Measure AC voltage values 0 ~ 500V.

♦Measure AC current values 0 ~ 5A; if below 5A, tandem connection can be made directly.
Specification

♦Working power supply: AC/DC 85 ~ 240V

♦Display screen: single-row type 14.5X8.5

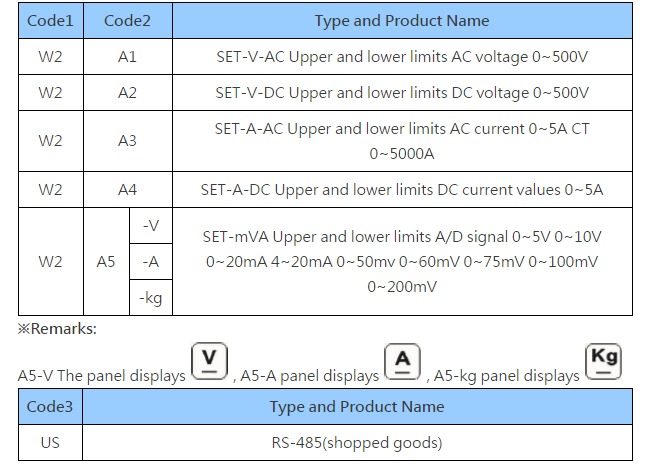

Selected type and specification of single-row window : VA - Code 1 - Code 2 + Code 3
read more
AC/DC Voltage and current signal upper and lower limits control meter
Operations manual
Description

♦Measure AC voltage values 0 ~ 500V.

♦Measure AC current values 0 ~ 5A; if below 5A, tandem connection can be made directly.
Specification

♦Working power supply: AC/DC 85~240V

♦Display screen: double-row type,upper row 14.5X8.5 and lower row 10X5


Selected type and specification of single-row window: VA - Code 1 - Code 2 + Code 3
read more
